RKI Instruments GX-3R Confined Space Monitor Bundle (LEL/O2/CO/H2S)

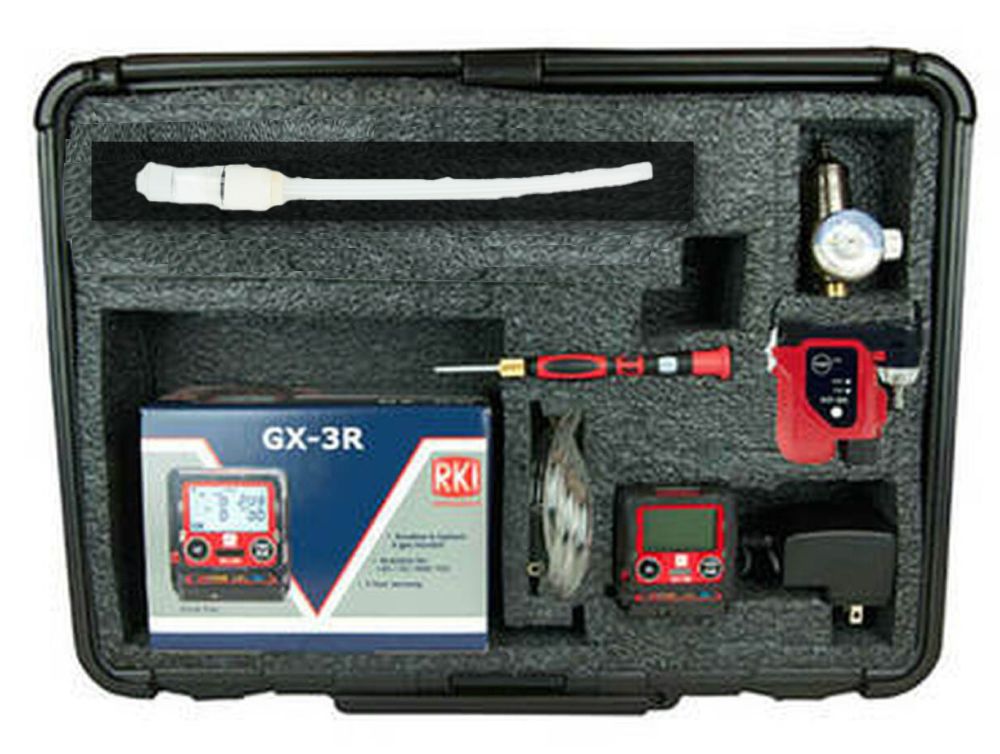

Complete Kit Includes RKI Instruments GX-3R 4-Gas Confined Space Monitor (LEL/O2/CO/H2S) Bundled with RP-3R Clip-On Sampling Pump, 10' Hose and Probe, 100-240 VAC Charger, Screwdriver, and Carrying Case



Complete Kit Includes RKI Instruments GX-3R 4-Gas Confined Space Monitor (LEL/O2/CO/H2S) Bundled with RP-3R Clip-On Sampling Pump, 10' Hose and Probe, 100-240 VAC Charger, Screwdriver, and Carrying Case

Confined Space 4-Gas Monitor Features:

• Smallest & lightest 4-gas monitor
• 2.2" W x 2.55" H x 1.02" D, 3.52 ounces
• Simultaneous detection of 4 gases
• LEL, O2, H2S & CO
• H2 Compensated CO sensor available
• Simple 2-button operation
• Non-Compliance Indicator
• Alarms: audible, visual, & vibration
• Three user-adjustable alarm levels
• 25 hours of operation (Lithium-ion battery)
• Water and dust resistant design, IP66/68
• 3-year warranty

Gas Detected	(CO) H2 Compensated	Carbon Monoxide(CO)	Hydrogen Sulfide(H2S)	H2S Only		Combustible Gases (Methane as standard)	Oxygen
		Dual Sensor
Sensor Slot	1					2	3
Detection Principle	EC	Dual EC		EC		Catalytic combustion	EC
Detection Range (Increments)	0 ~ 2,000 ppm (1 ppm)		0 ~ 200.0 ppm (0.1 ppm)			0 ~ 100% LEL (1% LEL)	0 ~ 40% Vol. (0.1%)
Accuracy Statement	± 5% of reading or ± 2 ppm CO	± 5% of reading or ¬± 5 ppm CO (whichever is greater)	± 5% of reading or ¬± 2 ppm H2S (whichever is greater)			± 5% of reading or ¬± 2% LEL (whichever is greater)	± 0.5% of reading O2
Sampling Method	Diffusion sampling standard (hand aspirator or clip-on motorized pump optional)
Display	Digital LCD displays with 7 segment plus 14 segment plus icon
Preset Alarms (User Adjustable) Overscale alarm (Non-adjustable)	1st alarm: 25.0 ppm 2nd alarm: 50.0 ppm 3rd alarm: 1200.0 ppm TWA alarm: 25.0 ppm STEL alarm: 200.0 ppm Over alarm: 2000.0 ppm		1st alarm: 5.0 ppm 2nd alarm: 30.0 ppm 3rd alarm: 100.0 ppm TWA alarm: 1.0 ppm STEL alarm: 5.0 ppm Over alarm: 200.0 ppm			1st alarm: 10% LEL 2nd alarm: 25% LEL 3rd alarm: 50% LEL Over alarm: 100% LEL
Types of Alarms	Gas Alarm: 3 Increasing alarms, STEL, TWA, overscale alarm. O2 decreasing/increasing. Trouble alarm: Sensor disconnection, low battery, circuit error, calibration range error
Display of Alarm	Gas Alarm: Flashing LEDs, continuous buzzer (100 db @ 30 cm), flashing gas value, vibration Trouble alarm: Flashing LEDs, intermittent buzzer (95 db @ 30 cm), display of error message
Operating Temp. & Humidity	-20º C ~ +50º C [ -4º F ~ +122º F ], 10 to 90% RH, non-condensing (continuous environment) -40º C ~ +60º C [ -40º F ~ +140º F ], 0 to 95% RH, non-condensing (temporary environment, 15 minutes)
Response Time	Within 30 seconds (T90)
Power Source	Lithium-ion battery, Approx. 25 hours after a 3-hour full charge
Approvals	ATEX, CSA
Dimension & Weight	2.2" W x 2.55" H x 1.02" D (Approx. 58 W x 65 H x 26 D mm), 3.52 ounces (approx. 100 g) without rubber booth 2.4" W x 2.63" H x 1.06" D (Approx. 61 W x 67 H x 27 D mm), 3.70 ounces (approx. 105 g) with rubber booth
Case Material	Explosion proof, dust and water resistant to IP-66/68 (2m,1h) approval. Drop height 23 ft
Controls	Two buttons: POWER / MODE, AIR
Datalogging	Logs user ID, station ID, Calibration & Bump Test history, Alarm Events & Alarm Interval Trends
Standard Accessories	Alligator clip, protective rubber boot, charger, and calibration adapter
Optional Accessories	SDM-3R calibration station RP-3R Clip-on sampling pump with 4" rubber nipple, 10' hose and probe (up to 40' hose available) Padded carrying case for GX-3R and accessories USB to IrDA downloading cable for datalogger
Warranty	Three years material and workmanship
